Description

The Toro GrandStand® combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind creating a fast, maneuverable and more productive alternative. The HDX model provides increased efficiency with higher horsepower.

Features:

• The TURBO FORCE® cutting deck is built to withstand the long, tough days on the job.
• 24" tires with big block horsepower allow you to travel at 12 mph.
• More efficient operation with a flip up operator platform, utility hood and easy to get on and off.
• The 7 gauge TURBO FORCE® deck with the i-beam front end is built to last and backed by our impressive warranty.
• Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
• 10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
• Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
• A wide stance and optimal balance enhance hillside stability and control.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specification:

• Product Type: Stand-On Mower
• Weight: 1,055 lbs / 478.5 kg
• Box Dimensions: 82 in. x 63 in. x 52.5 in. / 208.3 cm x 160.0 cm x 133.4 cm
• Fuel Type: Gasoline
• Fuel Capacity: 10.5 gal. / 39.7 L / 42 Qt.
• CARB Compliant: Not CARB Compliant

Engine

• Engine Brand: Kawasaki
• Engine Model: FX921
• Engine Horsepower: 31.0 hp
• Engine Displacement: 999 cc
• Air Filter: Heavy-Duty Canister Air Cleaner
• Start Type: Electric

Drive System

• Drive Type: Tuff Torq TZT13s 13cc IHTs
• Drive Tires: 24 in. x 9.5 in. – 12 in. (61 cm x 24.1 cm – 30.5 cm)
• Caster Tires: 13 in. x 6.5 in. (33 cm x 16.5 cm) Flat-Free Semi-Pneumatic
• Forward Ground/Transport Speed: Up to 12.0 mph / 19.3 kph
• Reverse Ground/Transport Speed: Up to 5.0 mph / 8.0 kph

Cutting Deck

• Deck Size: 52 in / 132 cm
• Deck Design: 7-gauge TURBO FORCE® 2 with bull-nose bumper
• Discharge Chute: Rubber
• Blade Design: 0.204 in. / 0.518 cm
• Number of Blades: 3
• Height of Cut: 1.5 - 5.0 in. / 3.8 - 12.7 cm (in 0.25 in / 0.64 cm increments)
• Anti Scalp Wheels: Standard
• Adjustable Discharge Baffle: Standard, Tools-Free

Controls & Features

• Steering Controls: Twin Lever
• Comfort Platform: Foldable Operator Platform with Suspension
• Hour Meter: Standard

Spindle Assembly

• Spindle Bearings: Greaseless Ball Bearings
• Spindle Housing: 9 in / 22.9 cm Diameter Cast Aluminum
• Clutch: Electromagnetic

Description:

Now you can be more productive all-season long with the innovative Toro® GrandStand® MULTI FORCE stand-on mower that has the ability to attach a plow, power broom and bagging system. It features a 52 in. Turbo Force cutting and 26.5 hp Kohler EFI 747cc engine. It's designed to give you even more productivity. The smaller footprint takes up less space on the trailer when transporting. Mows 25% faster with speed up to 10 mph, has a 10.5 gallon fuel tank that allows you to go farther and work longer. We've eliminated the hydraulic hoses, reduced parts, no routine greasing and simplified the design to save you time. All GrandStand stand-on mowers give you exceptional operator visibility which leads to less property damage and a higher quality of work. Best of all, great traction on slopes and maneuverability.

Features:

• Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
• Foldable operator platform instantly converts the machine to a walk-behind.
• Great visibility for easy navigation around obstacles, protecting the operator, mower, and property.
• Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
• No hydraulic hoses, reduced parts, no routine greasing and simplified design to save you time.
• Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
• The TURBO FORCE® cutting deck is built to withstand the long, tough days on the job.
• 10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
• A wide stance and optimal balance enhance hillside stability and control.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

• Adjustable Discharge Baffle: Standard, Tools-Free
• Air Filter: HD Canister
• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Blades: 0.204 in. (0.5 cm) heat-treated steel
• Box Dimensions: 82 in. x 63 in. x 52 in. / 208.3 cm x 160.0 cm x 132.1 cm
• CARB Compliant: Not CARB Compliant
• Carrier Frame: 3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)
• Caster Tires: 11 in. x 4 in. - 5 in. (27.9 cm x 10.2 cm - 12.7 cm) Flat-Free Semi-Pneumatic
• Clutch: Electromagnetic
• Comfort Platform: Foldable Operator Platform with Suspension
• Controls: Twin lever
• Deck Design: 80-grade 7-gauge 52" (132 cm) TURBO FORCE® w/bull-nose bumper
• Deck Material: 7 Gauge Steel
• Deck Size: 52 in / 132 cm
• Discharge Chute: Rubber
• Drive System: Unitized Pumps 10cc rev Wheel Motors 10 cir
• Drive Tires: 20 in. x 10.5 in. - 8 in. (50.8 cm x 26.7 cm - 20.3 cm)
• Engine: 26.5 hp Kohler Command EFI 747 cc
• Engine Brand: Kohler
• Engine Displacement (cc): 747 cc
• Engine Horsepower: 26.5 hp
• Forward Ground/Transport Speed: Up to 10.0 mph / 16.0 kph
• Front Bumper: Reinforced Bull-Nose
• Fuel Capacity: 10.5 gal. / 39.7 L / 42 Qt.
• Fuel Type: Gasoline
• Height of Cut: 1.5 - 5.0 in. / 3.8 - 12.7 cm
• Hour Meter: Standard
• Hydraulic Fluid: Premium synthetic
• Product Type: Stand-On Mowers
• Product Use: Commercial
• Spindle Bearings: Maintenance-free
• Spindle Housing: 9.375 in / 23.8 cm Diameter Cast Iron
• Start Type: Electric
• Steering Controls: Twin Lever
• Weight: 949 lbs / 430.5 kg

Description:

NEW 55 in. (139.7 cm) Power Broom designed to tackle sidewalks and clear snow and debris down to the pavement.Additional Parts required. (If you already have the BOSS plow attachment you will only need part # 78601.)

High-Flow Hydraulics Kit (Toro) - part # 78601

Low-Flow Hydraulics Kit (Boss) - part # MSC13950

Triangle Attachment Plate (Toro) - part # 136-0513

Features:

• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

Description:

The future of lawn care and your business is here. The new Revolution Series GrandStand is built on the same proven GrandStand chassis and TURBO FORCE® deck that you’ve trusted for years but with a quieter, eco-friendlier design to deliver lower overall cost over the machine’s lifetime. Featuring our Horizon Technologies, the Revolution Series provides you with a smarter, more connected fleet that makes your operation more efficient than ever before. With all-day runtime from the Toro developed HyperCell battery system, you can expect to power through your day, every day.

Features:

• Optimize machine feel and response, including speed control, with patent-pending software controls.
• Automatically pairs with Horizon360 connected technology to get remote insights including battery life and charging status.
• Toro's Hypercell Battery is designed to operate with the machinery and meet landscaper needs.
• Optimize run time and quality of cut with the adjustable deck rake.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications

• Product Use: Commercial
• Fuel Type: Battery (Toro HyperCell)
• Start Type: Electric
• CARB Compliant: Yes
• Hour Meter: Standard
• Lighting: LED Headlights
• Battery & Charging
• Battery Capacity: 18.4 kWh
• Battery Power: Toro HyperCell
• Battery Run Time: 4.5 – 7+ hours
• Battery Charge Time: 14 hours
• Charge Type: 1.2kW, 120V
• Number of Batteries Included: 8
• Cutting System
• Deck Size: 52 in / 132 cm
• Deck Design: 7-gauge TURBO FORCE®
• Deck Material: 7 Gauge Steel
• Height of Cut: 1.5 – 5.5 in. / 3.8 – 14.0 cm
• Blades: 0.204 in. (5.18 mm)
• Blade Tip Speed: Adjustable
• Discharge Chute: Rubber
• Spindle Housing: 9 in / 22.9 cm Diameter Die-Cast Aluminum with Blade Retainer
• Drive & Steering
• Motor:
• Traction Motor: Commercial High Torque
• Mowing Deck: Mid-Mount Commercial High Torque
• Drive Tires: 20 in. x 10.5 in. - 12 in. (51 cm x 26.7 cm - 30.5 cm) Super Turf
• Caster Tires: 11 in. x 4 in. - 5 in. (27.9 cm x 10.2 cm - 12.5 cm) Semi-pneumatic
• Steering Controls: Twin Lever
• Transmission: Planetary Gearset
• Forward Speed: Up to 10.0 mph / 16.0 kph
• Dimensions & Weight
• Weight: 1,118 lbs / 507.1 kg
• Box Dimensions: 82 in. x 63 in. x 52.5 in. / 208.3 cm x 160.0 cm x 133.4 cm

Description:

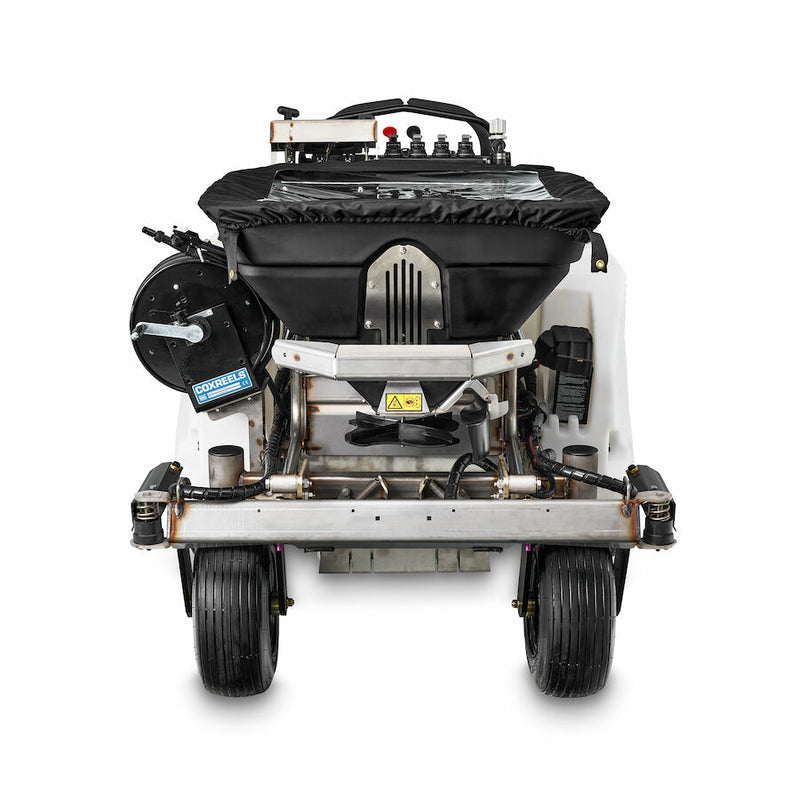

Uneven applications cost you valuable time and money, not to mention unhappy clients. The Stand-On 60 Gallon SprayMaster And as a Toro owner, you'll have access to nearly 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.

Features:

• The control panel allows the operator to conveniently make adjustments for a precise application.
• The 36" wide compact design allows for exceptional maneuverability.
• Reduce operator fatigue with rubber compression in the foot plate and a larger padded knee bolster.
• The flip up hopper provides easy access to the engine and battery for maintenance.
• Ride in style with improved hopper cover and knee bolster featuring Toro's bullhorn logo.
• The new design increases the balance and stability resulting in less turf tear up.
• Easy spot spraying with larger foot switch so the operator doesn't accidentally hit it. Operator can move the location to three different spots for convenience.
• Carry up to 100 lbs. of additional fertilizer with 2 fertilizer trays (50 lbs. per tray) to get the job done faster with less re-fill trips.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

• Drive System: HYDRO
• Engine: Vanguard 16 hp
• Engine Brand: Briggs and Stratton
• Engine Displacement: 479 cc
• Engine Horsepower: 16.0 hp
• Frame: Stainless Steel
• Fuel Capacity: 5 gal. / 18.9 L / 20 Qt.
• Fuel Type: Gasoline
• Ground Speed: Up to 7.0 mph / 11.2 kph
• Hopper Capacity: 150 lbs
• Product Type: Spreader/Sprayer
• Recommended Oil Type: 10W50
• Spray Capacity: 24 gallons
• Spray Wand: Standard, hand-held spray wand for spot spraying
• Spray Width: 2 ft, 4 ft, 6 ft, or 8 ft / 0.6 m, 1.2 m, 1.8 m, or 2.4 m
• Spreader Hopper Capacity: 150 lbs
• Spreading Width: Up to 25 ft
• Start Type: Electric
• Tires:
• Drive Tires: 22 in x 8.5 in - 12 in / 55.8 cm x 21.5 cm - 30.4 cm
• Ribbed Front Tires: 15 in x 5 in - 6 in / 38.1 cm x 12.7 cm x 15.2 cm
• Transaxle: HydroGear ZT3400

Description:

TORO TimeCutter 50 in 23 HP V Zero Turn Lawn Mower 77501

Product Information:

No matter how you cut it, the Toro TimeCutter MAX arms you with professional performance, rock-solid durability and best-grass-in-the-neighborhood precision. Built with over a century of pro-level engineering, this lawn-dominating machine features a heavy-duty IronForged deck, beefy, traction-happy tires, easy maintenance, and a plush, gaming-style seat to give you the edge over whatever nature throws your way.

Specifications:

• Air Filter: Standard Kawasaki Air Cleaner
• Anti Scalp Wheels: 3 Standard
• Armrests: Optional
• Bagger Capacity: 4.9 bushels
• Blade Tip Speed: 17,600 ft/min / 5,364 m/min
• Box Dimensions: 82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm
• CARB Compliant: Not CARB Compliant
• Carrier Frame: 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
• Caster Tires: 12 in. x 6 in. - 5 in. (30.5 x 12.2 cm - 12.7 cm) Pneumatic
• Clutch: Electromagnetic
• Comfort Platform: Standard Suspension
• Cooling System: Air Cooled
• Crankshaft: 1" (25 mm) w/Steel Protector
• Cup Holder: Standard
• Cutter System: Steel Cutting Blade
• Deck Design: 10-Gauge steel IronForged®
• Deck Material: 10 Gauge Steel
• Deck Size: 50 in / 127 cm
• Discharge Chute: Side
• Drive System: HYDRO
• Drive Tires: 20 in. x 10 in. - 8 in (51 cm x 26 cm - 20.3 cm)
• Drive Type: Rear-Wheel Drive
• Engine: 23 hp Kawasaki FR691V 726cc
• Engine Brand: Kawasaki
• Engine Displacement (cc): 726 cc
• Engine Horsepower: 23.0 hp
• Engine Power (kW): 17.2 kW
• Foot Operated Height of Cut: Standard
• Forward Ground/Transport Speed: Up to 7.0 mph / 11.2 kph
• Forward Mowing Speed: Up to 7.0 mph / 11.2 kph
• Frame: 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
• Fuel Capacity: 5 gal. / 18.9 L / 20 Qt.
• Fuel Type: Gasoline
• Greasable Bearings: Yes
• Height of Cut: 1.5 - 5.0 in. / 3.8 - 12.7 cm
• Hitch Bracket: Standard
• Hour Meter: Optional
• Hydraulic Drive: Standard
• Lighting: Optional
• Number of Blades: 3
• Product Type: TimeCutter Max
• Product Use: Residential
• Recommended Oil Type: 10W-30
• Roll-Over Protection (ROPS): Optional
• Seat: 19" Gaming Style
• Spindle Bearings: Maintenance-free
• Spindle Housing: Cast-Aluminum
• Start Type: Electric
• Steering Controls: Twin Lever
• Steering Dampeners: Standard Dampers
• Terrain Type: Flat with Obstacles
• Tires: 12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear
• Tow Capacity: Combined machine, user, towed weight may not exceed 1,000 lbs.
• Transmission: Dual Hydrostatic HG-EZT2200
• Washout Port: Standard.

Description:

• Built Like a Bull - IronForged® high strength grade 50, 10-gauge steel deck with bull nose reinforced leading edge.
• Commercial DNA courses through these machines' veins with the same technology pros depend on.
• Step-Through Front End - Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.
• Storage Cubby - Now there's a convenient and safe space in your under-seat cubby to store important items.
• Ride in style with a handcrafted seat that provides the ultimate in padding and back support.
• Take control over your mowing speed, while never sacrificing blade tip speed.
• Shield your engine from tire spray and avoid backsplash on you with protective tire fenders.
• Brand Name: Toro
• Sub Brand: TimeCutter
• Model Number: 77404
• Deck Size: 42 in.
• Engine Displacement: 724 cc
• Powered By: Gas
• Product Type: Zero Turn Riding Mower
• Fuel Tank Capacity: 3 gal
• Maximum Forward Speed: 7 mph
• Maximum Reverse Speed: 3 mph
• Mow in Reverse: Yes
• Turning Radius: 0 in.
• Number of Blades: 2 blade
• Engine Brand: Briggs & Stratton
• Front Wheel Size: 11 in.
• Rear Wheel Size: 18 in.
• Maximum Cutting Height: 4.5 in.
• Minimum Cutting Height: 1.5 in.
• Deck Material: Steel
• Drive Type: Rear-Wheel Drive
• Width: 49 in.
• Height: 42 in.
• Cutting Options: Side Discharge
• Horsepower: 22 HP
• Armrest Kit Included: No
• Yard Size: 1-2 acre

Toro TimeCutter 77404 42 in. 724 cc Gas Zero Turn Riding Mower
