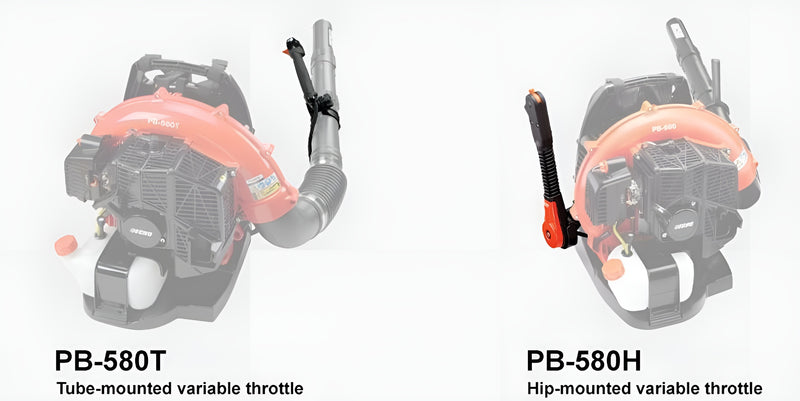

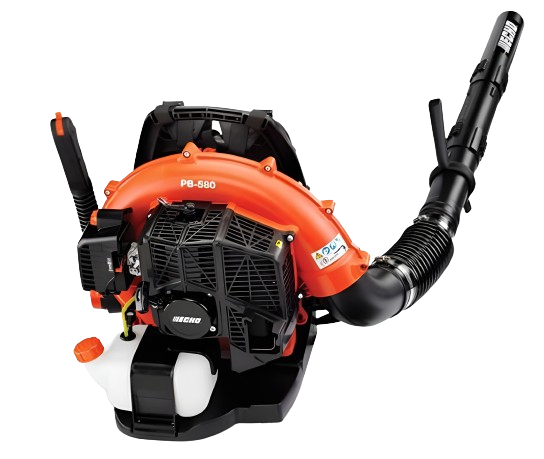

The best-performing blower in its class. The PB-580H backpack blower with hip-mounted throttle is designed for the oversized demands of professionals. From light mowing cleanups to wet, heavy leaves, it provides all-day productivity and all-day comfort. SPECIFICATIONS Type: Backpack Engine Displacement: 58.2 cc Carburetor (w/Purge Pump): Diaphragm Starting System: Standard Fuel Capacity: 62 fl. oz. See-Through Fuel Tank: Standard Helper Handle: Standard Air volume at nozzle: 517 Maximum Air Speed (mph) at nozzle: 216 MPH dB(A): 70 Dry Weight: 22.9 lb. Newtons (N) at nozzle: 22 N Warranty: 5 year consumer / 2 year commercial MSRP: $379.99 TOP FEATURES Powerful and cost-effective Comfortable backrest and shoulder pads 58.2 cc professional-grade, 2-stroke engine FEATURES - BRING MORE WIND TO YOUR WORK 58.2 cc professional-grade, 2-stroke engine: For outstanding performance and durability Metal ring on lower pipe: Helps to reduce pipe wear and useful for scraping debris Pleated, automotive-style air filter: Provides superior air filtration for long engine life Variable-speed, hip-mounted throttle with cruise control: Offers operator convenience Leaf guard: Keeps debris out of fan intake Padded backrest and shoulder straps: Provide operator comfort Posi-loc™ pipes: For a secure connection and maximum durability Exclusive vented back pad: Provides cooling air that circulates around the user for comfort in hot weather Weight 22.9 lb. Air Velocity 216 MPH Air Volume 517

Width	Weight	Height	Length
0 Inch	22.9 Pounds	0 Inch	0 Inch

Description:

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Features:

Ogura PTO Clutch Brake

• Strong, Adjustable Clutch for Long Life: The Ogura GT1 PTO Clutch Brake delivers 74 ft. lb. of holding strength, ensuring excellent starting and stopping power for the cutter deck. It features an adjustable air gap for extended durability.

Deep, Fabricated, and Welded Cutter Decks

• Heavy-duty Hero Cutter Deck Design: The Liberty Z mower incorporates a deep, fabricated cutter deck that excels at handling high volumes of grass at increased speeds. The deck is designed for optimal quality-of-cut and is built to withstand rigorous use.
• Heavy-duty, Aluminum, Sealed Ball Bearing, Blade-Drive Spindles: Ensures reliable performance season after season.

High-Strength Steel Frame

• Solid Design for Years of Dependable Service: The main frame is constructed from tubular steel, providing unmatched strength and durability.

Low-Maintenance Mower Design

• More Uptime: The Liberty Z is designed with fewer grease points, enhancing operator convenience and ease-of-ownership.

Proven Transaxles

• Speeds Up to 7 MPH: Equipped with proven dual hydro transaxles (Tuff Torq TZ450, or Hydro-Gear ZT-2800 or ZT-3100 depending on the model), ensuring smooth and solid power delivery to the drive wheels.

Contoured, Bolstered, High-Back Seat

• Ride in Comfort: The ultra-comfortable seat is adjustable with tools, contoured for improved comfort, and features armrests. Armrests are standard on 48″, 52″, and 61″ models, with an optional kit available for 36″ and 42″ models.

Easy Foot-Pedal Deck Lift

• Easy Up, Easy Down: The foot-pedal cutter-deck lift is spring-assisted, making raising and lowering the cutter deck smooth and effortless.

Powerful and Efficient Engine Options

• Reliable Power, Up to 27 HP: Choose from a variety of proven air-cooled V-twin engine options, providing ample power to tackle a wide range of mowing tasks effectively.

Specification:

GENERAL

• Total Fuel Capacity: 5.5 gallons
• Drive Tires: 20″ x 10″-8″
• Caster Tires: 11″ x 6″-5″
• Seat: Padded with armrests, adjustment forward and back (tools required)
• DRIVE SYSTEM
• Drive System Type: Tuff Torq TZ450 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 10 cc (Tuff Torq)
• Forward Ground Speed: 7 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• DECK
• Cutting Width: 52″
• Type: Heavy-Duty Hero Cutter Deck
• Cutting Height: 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Ogura GT1 (74 ft lb) – for 52″ Liberty Z
• Adjustable air-gap for extended life.

Width	Weight	Height	Length
0 Inch	646 Pounds	0 Inch	0 Inch

Description:

All business—even at home—the Freedom Z® is perfect for landscapers needing a machine that can go the distance or for the pro-at-home who owns a large-acreage lot. Commercial-quality through and through, this machine is comfortable anywhere the job needs to be done.

Features:

• PTO Clutch Brake:
• Provides excellent starting and stopping power for the cutter deck.
• Offers 74 ft. lb. of holding strength.
• Adjustable air gap for enhanced durability.
• Cutter Deck:
• Deep, fabricated, and welded design for handling large amounts of grass at higher speeds.
• Heavy-duty Hero Cutter Deck construction for quality-of-cut.
• Aluminum, sealed ball bearing, blade-drive spindles for reliable performance.
• Frame:
• Tubular-steel main frame for unmatched strength and longevity.
• Transaxles:
• Hydro-Gear ZT-2800 Transaxles for speeds up to 8 MPH.
• Dual hydro transaxles with all-metal gears and spin-on oil filters.
• Large cooling fans to keep temperatures low and extend component life.
• Maintenance:
• Low-maintenance design with fewer grease points for increased operator convenience and uptime.
• Seat:
• Contoured, bolstered, high-back seat for improved comfort.
• Adjustable with tools and features armrests for added comfort during operation.
• Deck Lift:
• Easy foot-pedal deck lift with spring assistance for smooth raising and lowering of the cutter deck.
• Engine Options:
• Reliable power options up to 24 HP.
• Available with 22 hp and 24 hp Kohler® 7000 Series engines.
• PRO Performance filtration for smooth and consistent power delivery.

Specification:

• Engine: 26 HP Kohler® 7000 Series™ PRO – V-Twin, air-cooled engine.
• Cutter Deck: 52″ Hero Cutter Deck with dual-plate construction using 2 steel plates and a reinforcement plate at cutter deck spindles.
• Blade Engagement: Ogura GT1 PTO Clutch Brake with 74 ft lb holding strength and adjustable air-gap for extended life.
• Cutting Width: 52″
• Cutting Heights: Adjustable from 1.5″ to 4.5″ in 0.25″ increments.
• Deck Lift: Foot-operated pedal for easy adjustment.
• Drive System: Hydro-Gear ZT2800 Transaxle with internal pump (10 cc) and motor (16 cc).
• Speeds: Forward ground speed up to 8 mph, reverse ground speed up to 5 mph.
• Fuel Capacity: 6.5 gallons.
• Tires: Drive tires 20″ x 10″-10″, caster tires 11″ x 6″-5″.
• Seat: Padded with armrests, adjustable forward and back (tools required).
• Dimensions:
• Length: 73″
• Width (chute down): 64.5″
• Width (chute in transport position): 53″
• Height: 60″
• Weight: 765 lb

Width	Weight	Height	Length
53	765 Pounds	60	73 Inch

Description:

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Features:

Ogura PTO Clutch Brake

Other manufacturers opt for less expensive, smaller-capacity, nonadjustable, “disposable” clutches. Not Scag®. Scag PTO clutch brakes are manufactured by Ogura, the world’s best manufacturer of electromagnetic clutches, providing smooth blade engagements and fast blade stops.

All Ogura clutches feature an adjustable air gap. What does that mean to you? It means that when most clutches are worn out and must be replaced at a significant cost to YOU, the Ogura clutch can be easily adjusted to bring it back into specification (your Scag dealer can perform this adjustment).

These clutches also feature industry-leading torque values (the holding power that links the engine to the cutter-deck drive system) to ensure solid drive to the cutter deck and no slipping in heavy conditions.

Hero™ Cutter Deck

Command perfection:

Scag® cutter decks have always given our competition a serious case of deck envy. Many try to duplicate the performance, but none can match it. The Hero™ cutter deck is an outstanding performer and delivers beautiful results.

The Hero™ Cutter Deck provides the top line power, precision and performance professionals and homeowners demand. This extra-strong, fully fabricated and welded deck features “maintenance-free” aluminum spindles for years of worry-free performance

Strength — Scag’s tough cutter-blade spindles and Dual-Plate construction ensure solid performance and long life.

Productivity — An extra-large discharge opening enhances discharge for even clipping dispersal.

Engines

Kawasaki FR Series Engines

Residential-Grade Power:

Kawasaki® FR Series engines are compact, 90-degree, V-Twin engines that provide an ideal amount of torque and power. Operation is smooth and quiet for years of dependable homeowner operation. Other features include:

• Two-channel forced-air cooling.
• Pressurized lubrication system.
• High-energy, electronic spark ignition.
• Easy-access oil fill.
• 90-degree V-Twin design with overhead V-valve.
• Cast-iron liners.
• Automatic compression release.

Specifications:

• Model: Liberty Z 42
• Length: 68.5″
• Width (chute down): 54.5″
• Width (chute in transport position): 43″
• Height: 41″
• Weight: 595 lb
• Total Fuel Capacity: 3.5 gallons
• Drive Tires: 20″ x 10″-8″
• Caster Tires: 11″ x 4″-5″
• Seat: Optional armrest kit available
• Drive System Type: Hydro-Gear ZT-2800 Transaxle
• Internal Pump: 10 cc
• Internal Motor: 10 cc (Tuff Torq) / 16 cc (Hydro-Gear)
• Forward Ground Speed: 7 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 42″
• Type: Heavy-Duty Hero Cutter Deck
• Cutting Height: 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck of 2 steel plates
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Ogura GT1 (74 ft lb)
• Adjustable Air-Gap: For extended life

Width	Weight	Height	Length
54.5 Inch	595 Pounds	41 Inch	0 Inch

Description:

The Scag Cheetah II SCZII-61V-38CV-EFI is a zero-turn mower built for those who demand both exceptional performance and unmatched comfort. Here's a breakdown of its key features:

• Powerful Engine: Choose between a 38 HP Kawasaki® or 37 HP Briggs & Stratton™ air-cooled, electronic fuel injection (EFI) engine for tackling even the toughest mowing jobs.
• Unmatched Cut Quality: The Velocity Plus™ deck with a nearly half-inch thick Tri-Plate top ensures a clean, professional-looking cut, even at high speeds.
• Smooth Ride: Hydro-Gear ZT-5400 transaxles provide speeds up to 16 mph and a comfortable ride, while the anti-scalp rollers prevent damage to your turf.
• Effortless Maneuvering: The zero-turn design allows for sharp turns and easy navigation around obstacles.
• Operator Comfort: The operator suspension system with adjustable settings provides a smooth ride, even on uneven terrain.

Additional Highlights:

• Durable Construction: The heavy-duty, double-tube steel main frame ensures long-lasting performance.
• Easy Maintenance: Features like flip-up components and easy-to-reach grease zerks simplify maintenance.

In essence, the Scag Cheetah II SCZII-61V-38CV-EFI is a premium zero-turn mower that delivers outstanding cutting power, superior maneuverability, and a comfortable operator experience. It's ideal for homeowners with large lawns or those who value professional-grade results.

Width	Weight	Height	Length
73.5 Inch	1392 Grams	67 Inch	0 Inch

DESCRIPTION

52" Hero Cutter Deck, 27 HP Scag SR Series - 803 cc displacement

FEATURES

• Command perfection - Deep, Fabricated, and Welded Cutter Decks: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
• Easy Foot-Pedal Deck Lift - Easy Up, Easy Down: Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.
• Contoured, Bolstered, High-Back Seat - Ride in Comfort: This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.
• Hydro-Gear ZT-2800 Transaxles - Speeds Up To 8 MPH: The ZT drive system's dual hydro transaxles with all-metal gears and spin-on oil filters to deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.
• Low-Maintenance Mower Design - More Uptime: Fewer grease points increase operator convenience and ease-of-ownership.
• High-Strength Steel Frame - Solid Design for Years of Dependable Service: Tubular-steel main frame delivers unmatched strength and longevity.
• Powerful and Efficient Engine Options - Reliable Power, Up To 24 HP: The 22 hp and 24 hp Kohler® 7000 Series engines with PRO Performance filtration provide smooth, reliable power.

SPECIFICATIONS

• Description: 52" Hero Cutter Deck, 27 HP Scag SR Series - 803 cc displacement
• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 20" x 10"-10"
• Caster Tires: 11" x 6"-5"
• Seat: Padded with arm rests, adjustment forward and back (tools required)
• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 16 cc
• Forward Ground Speed: 8 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand-activated lever
• Cutting Widths: 48" and 52"
• Type: Hero Cutter Deck
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1 (74 ft lb); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 73"
• Width (chute down): 64.5"
• Width (chute in transport position): 53"
• Height: 60"
• Weight: 765 lb

ACCESSORIES

• 2-Bag Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Tiger Stripe Kit
• Light Kit
• Trailer Hitch
• Chrome Wheel Covers
• Blade Buddy

Width	Weight	Height	Length
53 Inch	765 Pounds	60 Inch	0 Inch

Description:

The SCAG Power Equipment SPZ-52H-22FX is a zero-turn riding mower engineered for homeowners with mid-sized to large lawns, prioritizing efficiency and top-notch cutting quality. Let's delve into its standout features:

Engine and Power:

• 22 HP Kawasaki® FX691 engine: Ample power for handling most mowing tasks efficiently.
• Hydro-Gear ZT3100 Transaxle: Ensures smooth operation and optimal power transfer.

Cutting Performance:

• 52-inch Heavy-duty Hero Cutter Deck: Wide coverage for faster mowing. Its robust construction guarantees durability and a pristine cut.
• Cutting Height Adjustment: Allows precise cutting height customization from 1.5 inches to 5 inches in 0.25-inch increments, suitable for various grass types.

Maneuverability and Control:

• Zero-turn design: Facilitates sharp turns and effortless navigation around obstacles.
• Foot-operated parking brake: Convenient control for stopping or dismounting the mower.

Additional Features:

• Fold-up armrests: Enhance operator comfort during extended mowing sessions.
• 6.5-gallon fuel capacity: Provides ample fuel for prolonged mowing sessions.
• Large drive tires (22" x 10.5"-12") and caster tires (13" x 6.5"-6"): Offer excellent traction and stability, even on uneven terrain.
• Headlights: Enhance visibility in low-light conditions (availability may vary depending on the seller).

Overall, the SCAG Power Equipment SPZ-52H-22FX is a well-appointed zero-turn mower that strikes a harmonious balance between power, cutting performance, and maneuverability, catering to homeowners with medium to large lawns.

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.The Ogura GT5 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 350 ft. lb. of holding strength, and an adjustable air gap for long life.

Width	Weight	Height	Length
0 Inch	1364 Pounds	0 Inch	0 Inch

72" Velocity Plus™ Cutter Deck, 37 HP Briggs Vanguard™ BIG BLOCK™ EFI - electronic fuel injection. Velocity Plus Cutter Decks: 61" or 72" Cutting Width: The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag's ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing. Ogura PTO Clutch Brake: Strong, Adjustable Clutch for Long Life: The Ogura GT5 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 350 ft. lb. of holding strength, and an adjustable air gap for long life. Hydro-Gear ZT-5400 Transaxles: Speeds Up To 16 MPH!: Two-speed ZT-5400 transaxle lets you choose either Low Range to travel up to 12 mph or High Range for up to 16 mph. Internal 16 cc pumps and 21 cc motors help provide speed, power and torque. The transaxle's design greatly reduces hoses and possible leak points. Heavy-Duty, Double-Tube Steel Main Frame: Solid Design for Years of Dependable Service: The Cheetah™ is ultra-strong and built for long life. It has a wide mower stance and extra-low center of gravity for ultimate stability and a replaceable front caster-wheel weldment.

Width	Weight	Height	Length
0 Inch	1400 Pounds	0 Inch	0 Inch

Description:

All business—even at home—the Freedom Z® is perfect for landscapers needing a machine that can go the distance or for the pro-at-home who owns a large-acreage lot. Commercial-quality through and through, this machine is comfortable anywhere the job needs to be done.

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.

Specifications:

GENERAL

• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 20″ x 10″-10″
• Caster Tires: 11″ x 6″-5″
• Seat: Padded with arm rests, adjustment forward and back (tools required)

DRIVE SYSTEM

• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump - 10 cc
• Motors: Internal Motor - 16 cc
• Forward Ground Speed: 8 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand-activated lever

DECK

• Cutting Widths: Available in 48″ and 52″
• Type: Hero Cutter Deck
• Cutting Height: Adjustable from 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1 (74 ft lb) Adjustable air-gap for extended life.

Product Dimensions

• 48″ Freedom Z
• Length: 73″
• Width (chute down): 60.5″
• Width (chute in transport position): 49″
• Height: 60″
• Weight: 745 lbs
• 52″ Freedom Z
• Length: 73″
• Width (chute down): 64.5″
• Width (chute in transport position): 53″
• Height: 60″
• Weight: 765 lbs

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Description:

Featuring a comfortable operator platform with first-class suspension that minimizes fatigue, the V-Ride II™ delivers a natural, intuitive and smooth riding position the entire day. With unrivaled performance, stability and durability, this machine helps keep you in tip-top condition to get the job done day after day, year after year.

Features:

TRI-PLATE DECK TOPS:

Super-rigid Tri-Plate deck construction results in a nearly 1/2" thick (0.485") steel cutter deck top (most zero-turn rider models).

FRONT BAFFLE CHAMBER:

Special front baffle chamber allows the grass to be lifted up before the blade cuts it. No stragglers.

WEAR PAD:

Replaceable trim-side wear pad protects the deck and landscaping from scraping and impact damage.

Specifications:

Fuel Capacity

• 32" Model: 5 gallons
• 36" Model: 6.75 gallons
• 48", 52", and 61" Models: 8 gallons

Tires

• Drive Tires:
• 32" Model: 20" x 6.5"-10"
• 36" Model: 20" x 8"-10"
• 48" and 52" Models: 24" x 9.5"-12"
• 61" Model: 24" x 12"-12"
• Caster Tires:
• 32" and 36" Models: 11" x 4"-5"
• 48" and 52" Models: 13" x 5"-6"
• 61" Model: 13" x 6.5"-6"

Seat

• Extra-large comfort cushion

Drive System

• Drive System Type: Dual Pump and Motor
• Pumps:
• 32" and 36" Models: Hydro-Gear 10 cc
• 48", 52", and 61" Models: Hydro-Gear 12 cc
• Motors:
• 32" and 36" Models: Parker 12 ci
• 48", 52", and 61" Models: Parker 14 ci
• Forward Ground Speed:
• 32" and 36" Models: 8.5 mph
• 48", 52", and 61" Models: 10.5 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever

Deck

• Cutting Widths: 32", 36", 48", 52", and 61"
• Type:
• 32" and 36" Models: Advantage
• 48", 52", and 61" Models: Velocity Plus™
• Cutting Height: 1.5" to 4.5" in 0.25" increments
• Deck Lift: Hand lever
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel, with reinforcement plates at cutter deck spindles.
• 32" Model: Dual-plate construction
• Spindles: Cast-iron housing with tapered roller bearings
• Blade Engagement:
• 32", 36", 48", and 52" Models: Ogura GT2.5 (150 ft lb)
• 61" Model: Ogura GT3.5 (250 ft lb) with adjustable air-gap for extended life

Width	Weight	Height	Length
0 Inch	832 Pounds	0 Inch	0 Inch

Description:

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability. Features may include: 48", 52" OR 61" CUTTING WIDTH The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.

Width	Weight	Height	Length
0 Inch	1180 Pounds	0 Inch	0 Inch

Description:

THE REAL DEAL FOR SERIOUS CHEMICAL APPLICATIONS

Looking to expand your lawn care offers? The Turf Storm XL and Turf Storm are ready to help you handle any job. With a 220-lb spreader capacity, 60-gallon sprayer capacity and an 8-ft spray boom, the Turf Storm XL can handle even the largest jobs. Conversely, the Turf Storm, with its 120-lb spreader capacity and 30-gallon sprayer capacity, is ideal for working on smaller residential properties. And, its 35.5-inch width (65-inch boom folded in) lets it fit through any standard gate. A 75-foot hose reel (Turf Storm XL) or 15-foot hose reel (Turf Storm) allows you to reach tough spaces.

Features:

Dual Liquid Tanks

• Capacity: Turf Storm XL has a 60-gallon capacity, while Turf Storm has a 30-gallon capacity.
• Measurement Indicators: Highly translucent tanks with raised indicators for accurate fill levels.
• Spray Booms: Turf Storm XL features 8-feet-wide booms with five nozzles, allowing for spraying widths of 2, 6, 8, or 10 feet. Turf Storm has a 65-inch wide spray boom, offering spraying widths of 2, 6, or 8 feet.
• Hose Reel: Turf Storm XL includes a 75-foot hose reel, while Turf Storm has a 15-foot flex hose, enabling access to tough spaces.

Spread up to 25 Feet

• Hopper Capacity: Turf Storm XL has a 220-pound dry/granular capacity, and Turf Storm has a 120-pound capacity.
• Spreader Motor: High-torque electric spreader motor facilitates up to a 25-foot spread width.

Wide Stance for Optimum Maneuverability and Stability

• Dynamically Balanced: Ensures stable footing without the need for locking front casters (Turf Storm XL only).

Ease of Use and Maintenance

• Drain Plug: Quick and efficient drain plugs at the lowest part of the tanks for easy draining and cleaning.

More Accurate Application Pattern

• Spreader Motor: High-torque electric motor reduces system heat, allowing for more precise control and accurate application.

Finger Tip Controls

• Operator Control Station: Ergonomic design with drive control lever for intuitive operation; all controls within easy reach.

Maximize Comfort

• Operator Platform: Spacious platform with extra-large comfort cushion and coil-spring suspension for a smooth ride.

23hp Vanguard Engine

• Power: 23 horsepower Briggs Vanguard® engine provides ample power, efficiency, and reliable performance.
• Charging System: 50-amp system ensures dependable operation of accessories like pumps, lights, and foam markers.

Easy Access

• Maintenance: Removable cushion and open lower area facilitate quick access to hydro drive pumps, reservoir, and mechanical components for easy servicing.

Specification:

Engine

• Engine: Briggs Vanguard™
• Horsepower: 23 hp
• Charging System: 12 Volt, 50 Amp

Fuel Capacity

• Total Fuel Capacity: 4.5 gallons

Wheels

• Front Wheel(s): 16″ x 6.5″-8″, pneumatic
• Rear Wheels: 20″ x 7″-10″, 4-ply

Currently Available Accessories

• Foamer Kit
• LED Light Kit
• 7 GPM pump

Drive System

• Drive System: Dual Pump and Motor
• Pumps: Hydro-Gear: PG Series 10 cc
• Motors: Parker TG Series: 14.5ci

Performance

• Ground Speed:
• Up to 8.5 MPH forward
• Up to 5 MPH reverse
• Parking Brake: Hand Lever

Dimensions

• Length: 65″
• Width (spray booms in): 35.5″
• Width (spray booms out): 65″
• Height: 50″

Weight

• Dry Weight: 859 lb

Warranty

• Warranty: 2-Year Commercial & Non-Commercial Warranty; 90-day Rental

Width	Weight	Height	Length
0 Inch	859 Pounds	50 Inch	65 Inch

An indispensable tool for the serious landscape chemical applicator or those looking to expand their offerings, the Turf Storm™ is built Scag® tough to treat large properties or residential lawns. Offering liquid and dry capacities for maximum productivity and profitability, the Turf Storm helps create better turf more efficiently than ever before.

Width	Weight	Height	Length
0 Inch	220 Pounds	0 Inch	0 Inch

61” VELOCITY PLUS CUTTER DECK, 37 HP BRIGGS-VANGUARD EFI AIR-COOLED ENGINE • Up to 12 MPH forward speeds and 5 MPH reverse speeds keep productivity at a maximum. (10 MPH forward speed on Diesel models) • Heavy-duty hydraulic drive system includes dual 16cc Hydro-Gear pumps and Parker wheel motors for reliable, zero turn maneuverability. Hydro-Gear 16cc hydraulic pumps provide smooth, positive and reliable power to the drive wheels. Extra large input bearing, input shaft and internal components add to reliability and performance. Built-in pressure relief valves reduce internal pressure spikes and add to pump life. • Auxiliary hydraulic oil coolers keep oil temperatures within a safe operating level and adds to hydraulic system component life. • Driveshaft driven cutter deck eliminates belt slip and provides increased reliability and longevity compared to a belt drive system. • Heavy-duty blade drive spindles provide reliable performance season after season. The Scag spindle easily handles the high horsepower and torque requirements of this powerful mower. Three year limited warranty. • Tri-Plate cutter deck top is incredibly strong. .485" deck top thickness from three separate layers of steel (7ga., 10ga, and 11ga.) • Fuel injected engine: The Briggs Vanguard EFI is incredibly powerful and efficient powerhouse. This engine will start easier and more fuel efficient than carbureted models, reducing overall operating cost. • Single fuel tank, 12 gallon capacity keeps you in the field cutting grass. Fuel tank is positioned low, in the center of the machine, enhancing the mower's low center-of-gravity and giving it excellent hillside stability. Fill up in the morning and cut all day long. • Double tube steel main frame construction delivers superior strength and ensures years of trouble free service. This design is much stronger than "bolt together" frame designs. The main frame was designed for an ultra-low center-of-gravity to increase hillside stability. • The Ogura GT3.5 PTO Clutch Brake delivers 250 ft. lbs. of starting and stopping torque. A GT5 model with 350 ft. lbs. of torque is used with the Briggs Vanguard engines. Adjustable air gap ensures long component life. • Standard equipment auxiliary canister air filter system on all Turf Tiger II's. This provides increased service intervals and longer engine life. Kohler engines feature removable access panels for easy cleaning of the cooling fins. • Engine radiator is mounted in front of the engine, as the engine manufacturer intended. Having the radiator positioned behind the seat offers extra protection against impacts and foreign material. Hydraulic oil cooler is also mounted in front of the radiator for maximum airflow and heat dissipation. • Engine hood on liquid cooled models help protect engine from debris damage. • Easily adjust cutting heights from the seat with the convenient top-access cutting height adjustment, easy to lift, 3-position adjustable foot pedal. Wide range of adjustment from 1" to 6" in 1/4" increments. • Custom-Cut Baffle allows you to customize the cutter deck to your individual cutting conditions. • Deck leveling adjustment bracket allows for easy in-the-field deck leveling adjustment. • Command-Comfort Operator's Station provides unmatched fatigue-fighting comfort. Quick-Fit control levers, 4-point iso-mounted suspension seat, 3-position deck lift foot pedal and spacious foot platform combine to provide unprecedented levels of adjustability, ergonomics and comfort. • Quick-Fit steering control levers with dual steering dampers for smooth, precise responsiveness. Steering levers are adjustable (without tools) to fit a wide range of operator sizes, increasing operator comfort. • Convenient cup holder keeps beverage securely in place and within easy reach. • Extra large 26 x 12 x 12 inch drive tires and 13 x 6.5 - 6 caster wheels ensure better traction, less turf tearing and easy curb climbing. 52" models feature 26 x 9.5 x 12 drive tires. • Flat-Free front caster tires virtually eliminate downtime and expense caused by flat front tires. • Tapered roller bearings are utilized in the front caster wheels and in the caster pivots for durability and reduced maintenance. • "Split-Steel" pulleys are used on load carrying areas like the cutter deck spindles and pump drive systems. Split steel pulleys are stronger than cast iron or stamped pulley designs. Our pulleys are strong for long life and lightweight for reduced inertia and decreased wear on the cutter deck drive system. • No plastic pulleys - Some [other brands] actually use plastic pulleys on their mowers. Not Scag. All Scag pulleys are made from metal. Plastic is for toys. • High-quality bearings and bearing debris guard on idler pulleys ensure long, reliable service. • Operator friendly instrument panel includes the Tiger Eye Advanced Monitoring System, ignition switch, mower engagement switch, water temperature gauge (liquid-cooled engines only).

Width	Weight	Height	Length
0 Inch	0 Pound	0 Inch	0 Inch

Description:

It’s time for you to rise to the top of the food chain and tame turf with the Turf Tiger II™, a machine that’s tougher than any job you can throw at it. Engineered for superior durability, productivity and comfort, the Turf Tiger II gives you the edge over whatever nature throws at you while leaving you ready to take on the next challenge.61" Velocity Plus' Cutter Deck, 40 HP Briggs Vanguard' BIG BLOCK' EFI – electronic fuel injection Features may include: Velocity Plus Cutter Decks 52", 61" OR 72" CUTTING WIDTH The envy of the industry, Velocity Plus' decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing. Driveshaft-Driven Cutter Decks ANOTHER REASON THE TURF TIGER IS KING OF THE JUNGLE. A driveshaft connects the engine to the deck, eliminating the long belt drive and increasing cutting-height range. Heavy-Duty, Double-Tube Steel Main Frame SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE The Turf Tiger' is ultra-strong and built for long life. It has a wide mower stance and extra-low center of gravity for ultimate stability and a replaceable front caster-wheel weldment.

Width	Weight	Height	Length
0 Inch	0 Pound	0 Inch	0 Inch
